Electrospindles TA Series

  • Electrospindles TA Series

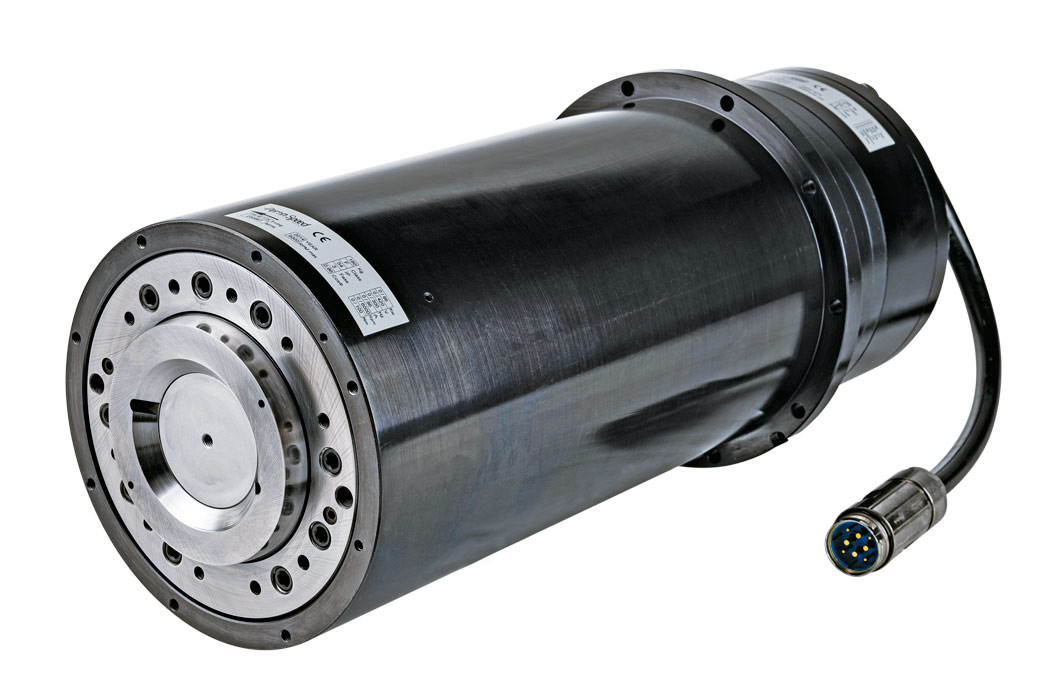

Turning electrospindles with integrated cooling circuit.

TA series

Turning electrospindles with ASA attachment and bar passage. Equipped with encoder for vector control, they can be supplied with an ASA attachment from 5 '' to 11 ''.

Standard configuration

  • Ceramic bearings
  • L + B 1Vpp or TTL encoder
  • PT 100 bearing temperature sensor

Options

  • Vibration sensor
Type Dimensions
Ø X L (mm)		 Tool S1 power (Kw) S1 torque (Nm)
Lubrification
GREASE
Max speed (Rpm)		 Nominal Speed (Rpm) Motor Download Schemi
PSI TA-100
 190 x539 ASA 5/6 40 103 9'000 3'700 Synchronous download

PSI TA-100-Dis.n°3485-00.pdf PSI TA-100-Dis.n°3485-00.pdf (89.5 KiB)
PSI TA-101
 140 x 616 ASA 5/6 29 110 5'000 2'800 Asynchronous download

PSI TA-101-Dis.n°2436-00-03.pdf PSI TA-101-Dis.n°2436-00-03.pdf (93.4 KiB)
PSI TA-200
 200 x508 ASA 6 26 41 6'000 6'000 Asynchronous download

PSI TA-200-Dis.n°2953-00-01.pdf PSI TA-200-Dis.n°2953-00-01.pdf (98.5 KiB)
PSI TA-201
 205 x 542 ASA 6 21 100 6'000 3'500 Asynchronous download

PSI TA-201-Dis.n°2041-00-04.pdf PSI TA-201-Dis.n°2041-00-04.pdf (93.8 KiB)
PSI TA-202
 220 x542 ASA 6 32 133 8'000 2'000 Synchronous download

PSI TA-202-Dis.n°4271-00.pdf PSI TA-202-Dis.n°4271-00.pdf (86.1 KiB)
PSI TA-203
 240 x 687 ASA 8 17 100 7'000 1'600 Synchronous download

PSI TA-203-Dis.n°2317-00.pdf PSI TA-203-Dis.n°2317-00.pdf (131.5 KiB)
PSI TA-204
 260x670 ASA 8 42 200 6'000 2'000 Asynchronous download

PSI TA-204-Dis.n°2947-00.pdf PSI TA-204-Dis.n°2947-00.pdf (86.0 KiB)
PSI TA-205
 260x695 ASA 8 22 210 5'000 1'400 Asynchronous download

PSI TA-205-Dis.n°4551-00.pdf PSI TA-205-Dis.n°4551-00.pdf (85.8 KiB)
PSI TA-206
 280x816 ASA 8 35 283 4'500 1'600 Asynchronous download

PSI TA-206-Dis.n°4337-00-04.pdf PSI TA-206-Dis.n°4337-00-04.pdf (96.4 KiB)
PSI TA-207
 285x1014 ASA 11 19 100 4'000 1'800 Synchronous download

PSI TA-207-Dis.n°2897-00-03.pdf PSI TA-207-Dis.n°2897-00-03.pdf (100.6 KiB)
PSI TA-300
 310x604 ASA 8 18 321 6'000 2'100 Asynchronous download

PSI TA-300-Dis.n°3768-00.pdf PSI TA-300-Dis.n°3768-00.pdf (84.8 KiB)
PSI TA-301
 310x714 ASA 8 46 440 4'000 500 Synchronous download

PSI TA-301-Dis.n°4273-00.pdf PSI TA-301-Dis.n°4273-00.pdf (86.3 KiB)
PSI TA-302
 310x600 ASA 8 23 220 3'500 550 Synchronous download

PSI TA-302-Dis.n°2037-00-01.pdf PSI TA-302-Dis.n°2037-00-01.pdf (86.5 KiB)
PSI TA-303
 320x717 ASA 11 72 600 3'000 1'200 Synchronous download

PSI TA-303-Dis.n°4979-00.pdf PSI TA-303-Dis.n°4979-00.pdf (101.0 KiB)
PSI TA-304
 350x1025 ASA 11 118 860 2'500 1'300 Synchronous download

PSI TA-304-Nm-Dis.n°4274-00.pdf PSI TA-304-Nm-Dis.n°4274-00.pdf (77.4 KiB)
PSI TA-305
 380x1054 ASA 11 105 1000 2'800 1'000 Asynchronous download

PSI TA-305-Dis.n°2660-00.pdf PSI TA-305-Dis.n°2660-00.pdf (89.7 KiB)
PSI TA-600
 600x980 ASA 15 63 1020 2'000 1'000 Synchronous download

PSI TA-600-Dis.n°5662-00-02.pdf PSI TA-600-Dis.n°5662-00-02.pdf (94.0 KiB)
